Customized 0-25.4mm/0-1″ Digital Thickness Gauge for Pipe Thickness Measurement With 500mm Measuring Depth

Customized 0-25.4mm/0-1″ Digital Thickness Gauge for Pipe Thickness Measurement With 500mm Measuring Depth

Produits - Mesureurs d'épaisseur - Mesureurs d'épaisseur numériques
  • Mettre en évidence

    Customized Pipe Thickness Measurement Gauge

    ,

    0-25.4mm Pipe Thickness Measurement Gauge

    ,

    500mm Depth Digital Thickness Gauge

  • Garantie
    D'un an
  • Mesures
    Métrique / pouce
  • Matériel
    Acier inoxydable
  • Mesurer le visage
    Acier
  • Gamme
    0-25,4 mm / 0-1 ″
  • Résolution
    0.01 mm/0.0005 "
  • Profondeur de la gorge
    500 mm
  • Application
    Mesurez l'épaisseur du papier, du cuir, du caoutchouc
  • Fonctionnalité
    avec poignée de poignée pratique
  • Mesurer les visages
    Sonde plate ou à balle
  • Emballer
    Casse en bois
  • Lieu d'origine
    Shaanxi, Chine
  • Nom de marque
    KM
  • Certification
    ISO DIN GB RoHS
  • Numéro de modèle
    KM-424 à 107
  • Détails d'emballage

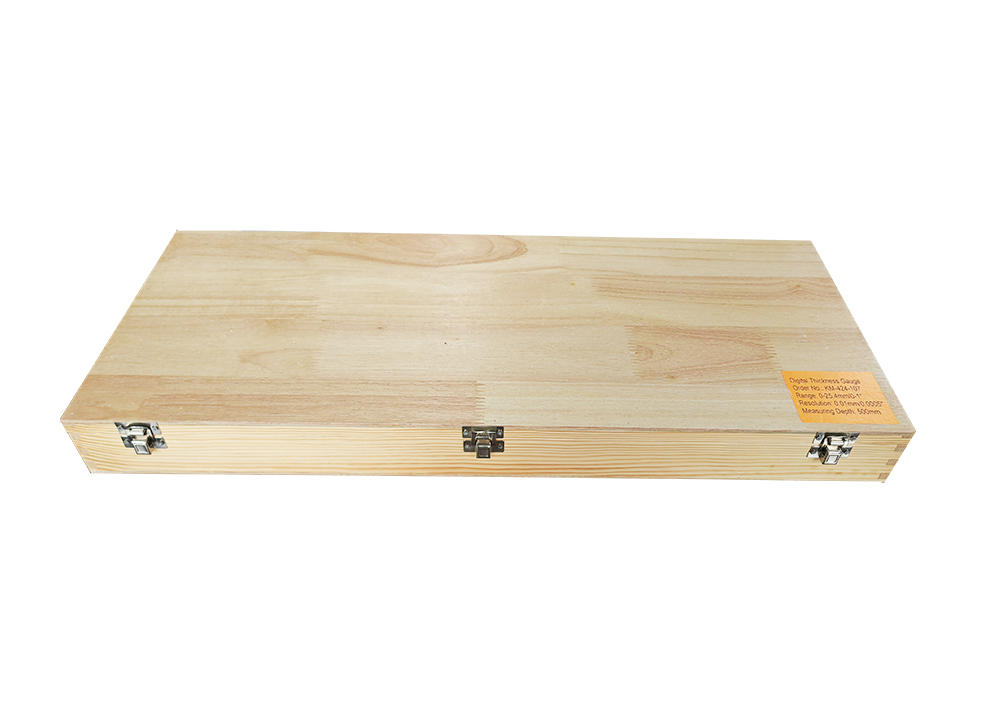

    Case en bois 77 * 27 * 5cm / pièce 3,00 kg / pièce
  • Délai de livraison
    En 15 jours
  • Conditions de paiement
    T / T, L / C, D / P, D / A, Western Union, Paypal, Moneygram
  • Capacité d'approvisionnement
    50000pieces / mois

Customized 0-25.4mm/0-1″ Digital Thickness Gauge for Pipe Thickness Measurement With 500mm Measuring Depth

  • Customized 0-25.4mm/0-1″ Digital Thickness Gauge for Pipe Thickness Measurement With 500mm Measuring Depth
  • Customized 0-25.4mm/0-1″ Digital Thickness Gauge for Pipe Thickness Measurement With 500mm Measuring Depth
  • Customized 0-25.4mm/0-1″ Digital Thickness Gauge for Pipe Thickness Measurement With 500mm Measuring Depth
  • Customized 0-25.4mm/0-1″ Digital Thickness Gauge for Pipe Thickness Measurement With 500mm Measuring Depth
  • Customized 0-25.4mm/0-1″ Digital Thickness Gauge for Pipe Thickness Measurement With 500mm Measuring Depth
  • Customized 0-25.4mm/0-1″ Digital Thickness Gauge for Pipe Thickness Measurement With 500mm Measuring Depth
Obtenir le prix Contactez
Customized 0-25.4mm/0-1″ Digital Thickness Gauge for Pipe Thickness Measurement With 500mm Measuring Depth
Product Description

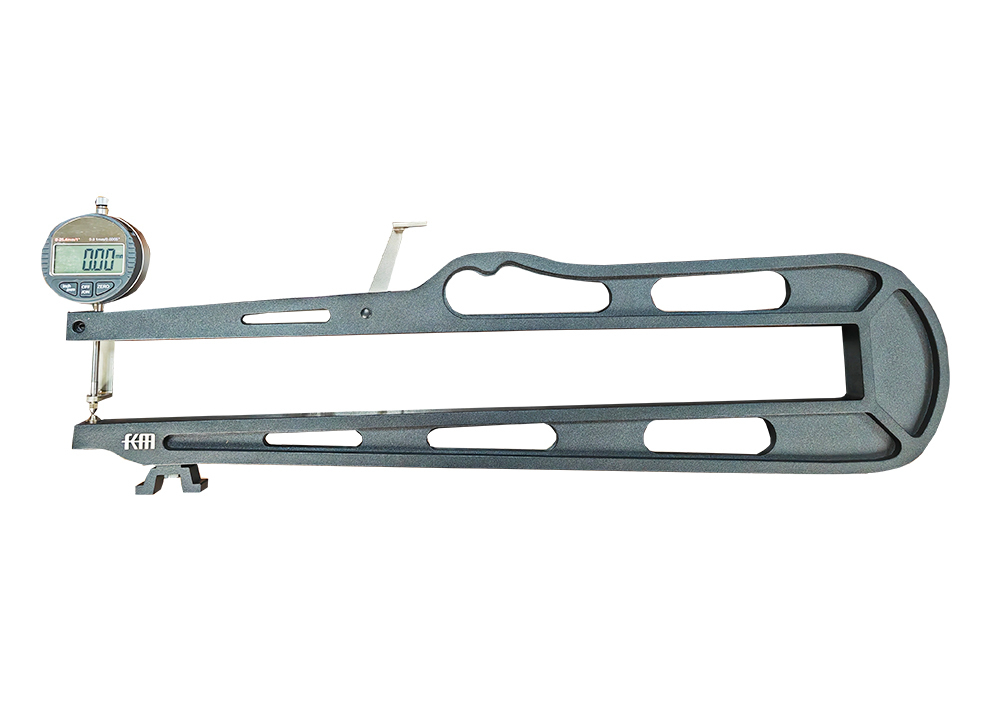

The digital thickness gauge is a precision measuring tool designed for accurate thickness measurement of various materials including paper, plastic, rubber, and metal. Featuring a clear digital display, it provides direct measurement readings with automatic metric/inch conversion to eliminate manual reading errors and enhance measurement efficiency.
This gauge offers both flat and ball anvils for different material types, with anvil options available in steel or ceramic materials (φ10mm, φ20mm, φ30mm diameters). Measuring ranges extend from 0-12.7mm/0-0.5'' up to 0-50mm/0-2'', with customizable measuring depths from 26mm to 800mm to suit specific application requirements.
Key Features

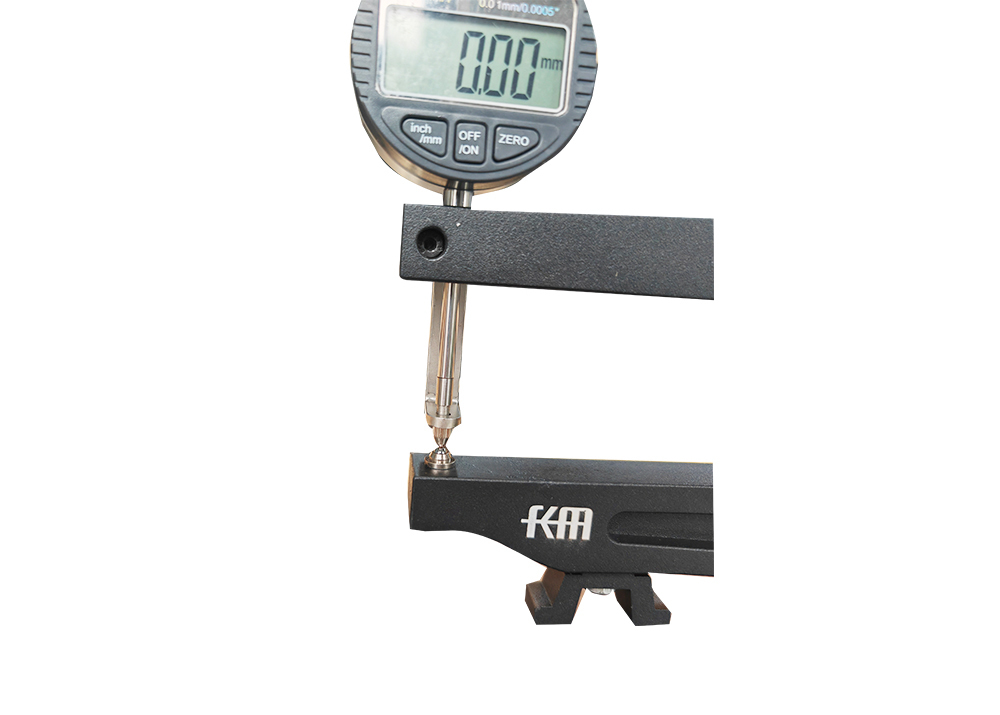

  • Large LCD display for easy reading
  • Zero-setting capability at any position
  • Automatic inch/metric conversion
  • Power on/off function
  • Ergonomic grip handle for quick measurements
  • Lifting lever for dial indicator
  • Multiple measuring face options for diverse applications
  • Choice of steel or ceramic measuring faces
  • Customizable measuring depth

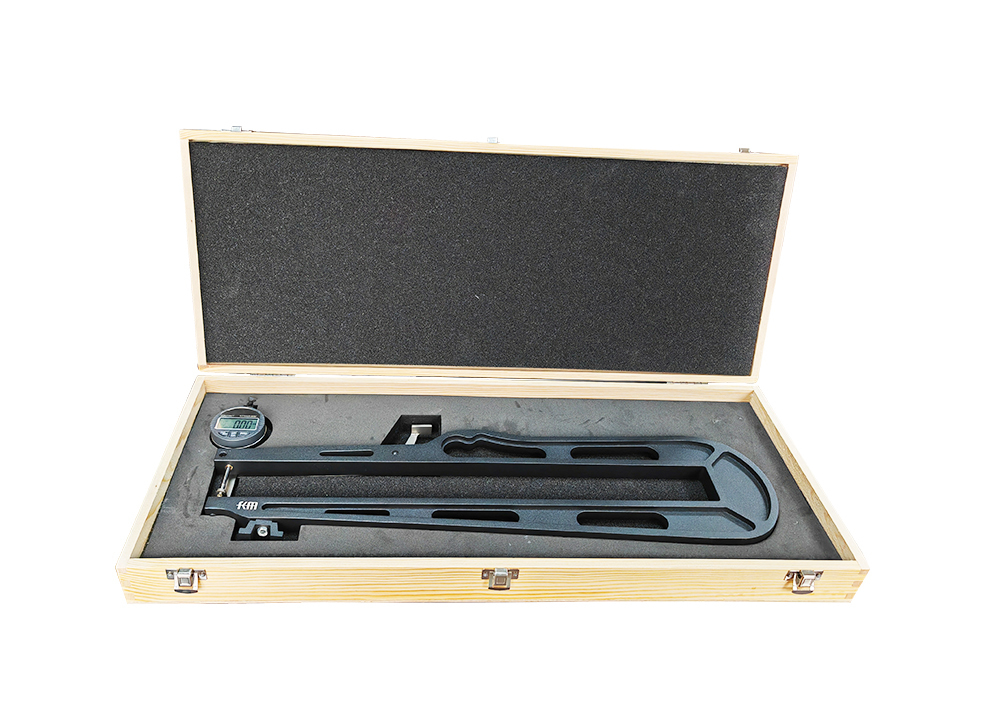

  • Includes protective fitted case
Specifications
Order No. Measuring Range Resolution Measuring Depth
KM-424-001 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 30mm
KM-424-002 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 60mm
KM-424-003 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 120mm
KM-424-004 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 200mm
KM-424-005 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 300mm
KM-424-006 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 400mm
KM-424-007 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 500mm
KM-424-101 0-25.4mm/0-1″ 0.01mm/0.0005″ 30mm
KM-424-102 0-25.4mm/0-1″ 0.01mm/0.0005″ 60mm
KM-424-103 0-25.4mm/0-1″ 0.01mm/0.0005″ 120mm
KM-424-104 0-25.4mm/0-1″ 0.01mm/0.0005″ 200mm
KM-424-105 0-25.4mm/0-1″ 0.01mm/0.0005″ 300mm
KM-424-106 0-25.4mm/0-1″ 0.01mm/0.0005″ 400mm
KM-424-107 0-25.4mm/0-1″ 0.01mm/0.0005″ 500mm
KM-424-201 0-50mm/0-2″ 0.01mm/0.0005″ 30mm
KM-424-202 0-50mm/0-2″ 0.01mm/0.0005″ 60mm
KM-424-203 0-50mm/0-2″ 0.01mm/0.0005″ 120mm
KM-424-204 0-50mm/0-2″ 0.01mm/0.0005″ 200mm
KM-424-205 0-50mm/0-2″ 0.01mm/0.0005″ 300mm
KM-424-206 0-50mm/0-2″ 0.01mm/0.0005″ 400mm
KM-424-207 0-50mm/0-2″ 0.01mm/0.0005″ 500mm
Applications
  1. Iron and steel industry: Measuring thickness of metal sheets for ships, bridges, and oil tanks
  2. Chemical industry: Measuring wall thickness of containers and pipelines
  3. Manufacturing: Measuring thickness of plastic products, paper, leather, rubber, fabric, and glass
  4. Aerospace: Measuring thickness of aircraft and engine components
  5. Automotive industry: Measuring thickness of body panels, brake discs, and other parts
Precautions
  1. Handle this precision instrument carefully to prevent impacts or drops that could affect accuracy
  2. Keep the gauge clean and protected from liquids to maintain proper functionality
  3. When the data output port is not in use, keep the cover in place and avoid touching terminals with metal objects
  4. Never apply voltage to any part of the thickness gauge or use sharp tools on it
  5. Remove batteries when storing for extended periods
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
