750-900mm Metric Outside Micrometer With Interchangeable Anvils For Different Measuring Range
-
Mettre en évidence
750-900mm Metric Micrometer
,Metric Outside Micrometer
,Interchangeable Anvils Metric Micrometer
-
GarantieD'un an
-
Objet de mesureDiamètre extérieur
-
MesuresMétrique
-
Gamme750 à 900 mm
-
Graduation0,01 mm
-
Précision± 0,020 mm
-
FonctionnalitéStop à cliquet
-
Mesurer les visagesCarbure
-
Méthode de mesureManuel
-
EmballerCasse en bois
-
Lieu d'origineShaanxi, Chine
-
Nom de marqueKM
-
CertificationISO DIN GB RoHS
-
Numéro de modèleKM-2105-750
-
Détails d'emballageCase en bois 100 * 84 * 6m / pièce 8,00 kg / pièce
-
Délai de livraisonEn 15 jours
-
Conditions de paiementT / T, L / C, D / P, D / A, Western Union, Paypal, Moneygram
-
Capacité d'approvisionnement50000pieces / mois
750-900mm Metric Outside Micrometer With Interchangeable Anvils For Different Measuring Range

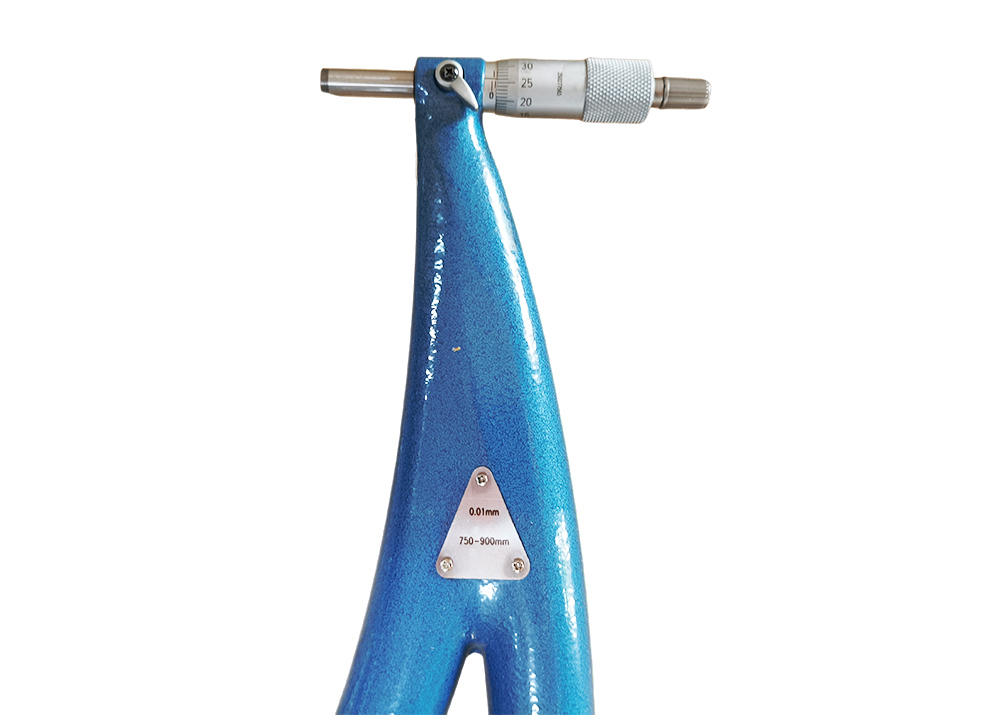

750-900mm Metric Outside Micrometer with Interchangeable Anvils
Product Descriptions:This digital outside micrometer features a compact design with a measuring range of 750-900mm, 0.01mm division, and ±0.020mm accuracy. It comes with standard setting bars and is ideal for measuring length, outside diameter, and material thickness in construction, mechanical engineering, mold making, automotive, and furniture industries.
The micrometer includes interchangeable anvils for measuring objects of different sizes and shapes. Its hardened and ground spindle with carbide anvil ensures durability and accuracy, while the ratchet thimble allows precise pressure application during measurement.
Designed for large-sized objects, this micrometer maintains stable measurement accuracy in various environments thanks to its durable construction and reliable structure.
Key Features:
- Wide measuring range with interchangeable anvils
- Steel-plate frame (within 300mm) or pipe combined frame (over 300mm)
- Painted and fine cast frame
- Laser-etched scale for clear reading
- Carbide measuring faces for accuracy and wear resistance
- Ratchet thimble for precise force application

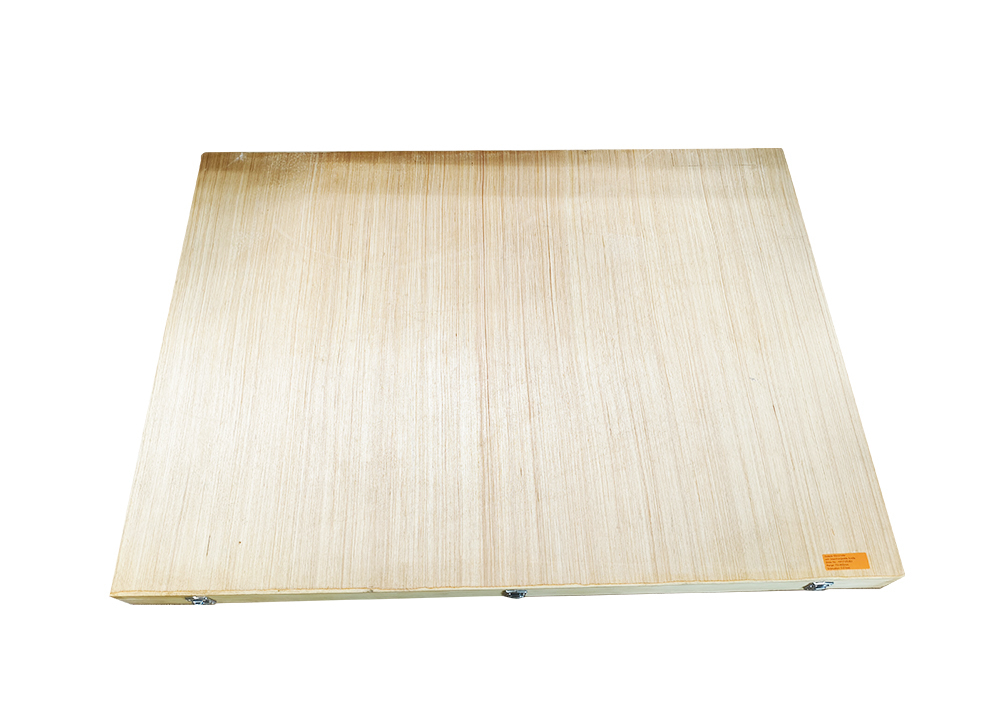

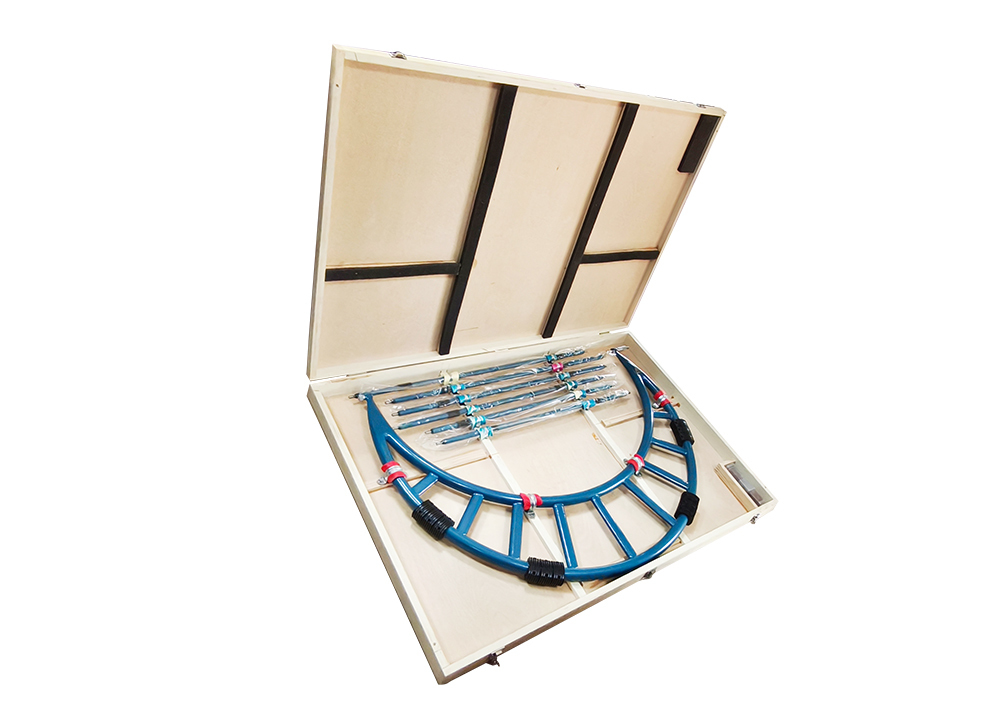

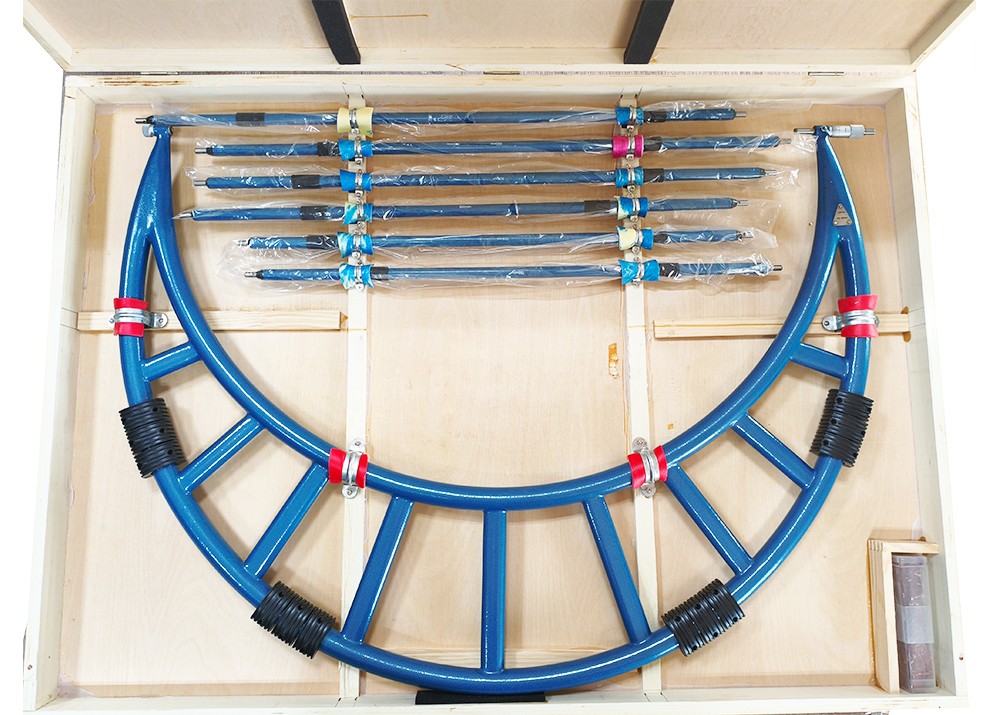

- Supplied in fitted case
Product Specifications:
| Order No. | Measuring Range | Graduation | Accuracy |
|---|---|---|---|
| KM-2105-400 | 300-400mm | 0.01mm | ±0.011mm |
| KM-2105-500 | 400-500mm | 0.01mm | ±0.013mm |
| KM-2105-600 | 500-600mm | 0.01mm | ±0.015mm |
| KM-2105-700 | 600-700mm | 0.01mm | ±0.016mm |
| KM-2105-800 | 700-800mm | 0.01mm | ±0.018mm |
| KM-2105-900 | 800-900mm | 0.01mm | ±0.020mm |
| KM-2105-1000 | 900-1000mm | 0.01mm | ±0.020mm |
| KM-2105-450 | 300-450mm | 0.01mm | ±0.011mm |
| KM-2105-601 | 450-600mm | 0.01mm | ±0.015mm |
| KM-2105-750 | 600-750mm | 0.01mm | ±0.016mm |
| KM-2105-901 | 750-900mm | 0.01mm | ±0.020mm |
| KM-2105-1050 | 900-1050mm | 0.01mm | ±0.021mm |
Applications:
This outside micrometer is essential for precision measurement in engineering, machining, physics, and manufacturing. It's commonly used for:
- Quality control in manufacturing to ensure part accuracy
- Outer diameter machining and dimensional measurement
- Roundness measurement in precision machining
- Automotive maintenance for tasks like tire diameter measurement
Usage & Maintenance:
- Select the appropriate anvil size matching your measurement range
- Keep the anvil clean to avoid measurement errors
- Regularly wipe the micrometer with a clean cloth
- Perform periodic maintenance including cleaning and calibration
About Deko Corporation:
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China.
Our Products:
Dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, protractors, gauge blocks, levels, and more.
Trade Terms:
We support FOB, CFR, CIF, and EXW.
Payment Methods:
T/T, L/C, D/A, D/P, PayPal, Western Union.
Customization:
OEM services available.
After-Sales Service:
One-year warranty on all products. Defective parts will be replaced promptly. Our strict quality control ensures reliable product performance.
