Internal Groove Micrometer with Pistol Grip 3-Point Contact for Bore Grooves Measurement
-
Mettre en évidence
Pistol Grip Internal Groove Micrometer
,Bore Grooves Internal Groove Micrometer
,3-Point Internal Groove Micrometer
-
GarantieD'un an
-
MesuresMétrique
-
Type de produitMicromètre à rainure interne
-
Plage de mesures20-25mm
-
Type d'enclumeContact à trois points
-
Type d'adhérencePoignée de pistolet
-
Application primaireMesure de la rainure interne, de l'alésage et du joint torique
-
Matériau à cadreAcier inoxydable haute résistance
-
EmballerBoîte en aluminium
-
Lieu d'origineShaanxi, Chine
-
Nom de marqueKM
-
CertificationISO DIN GB RoHS
-
Numéro de modèleKM-2306-25
-
Détails d'emballageBoîte en aluminium 37*22*16 cm/pièce 3,50 kg/pièce
-
Délai de livraisonEn 15 jours
-
Conditions de paiementT / T, L / C, D / P, D / A, Western Union, Paypal, Moneygram
-
Capacité d'approvisionnement50000pieces / mois

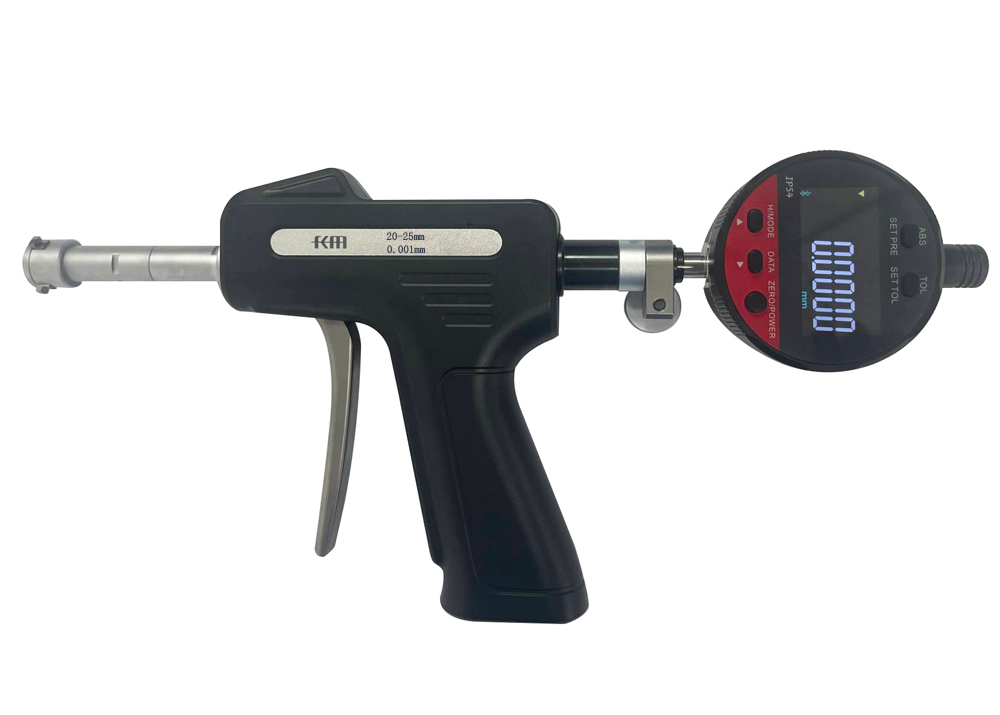

Internal Groove Micrometer with Pistol Grip 3-Point Contact for Bore Grooves Measurement
Internal Groove Micrometer with Pistol Grip 3-Point Contact for Bore Grooves Measurement
Product Overview
Precision internal groove micrometer featuring a pistol grip design and 3-point contact system for accurate bore groove measurements. Ideal for manufacturing and quality control applications.
Key Features
- Self-centering 3-point contact system ensures accurate bore measurements.
- Stepped measuring head facilitates easy groove diameter measurement.
- Rapid mobile measurement method enables efficient repeated measurements.
- Includes setting rings for measurements within 100mm range.
- Supplied in a protective fitted case for safe storage and transport.
Technical Specifications
| Order No. | Measuring Range | Measuring Width | Measuring Depth | Accuracy | Setting |
|---|---|---|---|---|---|
| KM-2306-8 | 6-8mm | 1.5mm | 1.5mm | 0.006mm | Φ6mm |
| KM-2306-10 | 8-10mm | 1.5mm | 1.5mm | 0.006mm | Φ8mm |
| KM-2306-12 | 10-12mm | 1.5mm | 1.5mm | 0.006mm | Φ10mm |
| KM-2306-16 | 12-16mm | 2mm | 1.5mm | 0.005mm | Φ16mm |
| KM-2306-20 | 16-20mm | 2mm | 1.5mm | 0.005mm | Φ16mm |
| KM-2306-25 | 20-25mm | 2mm | 1.5mm | 0.005mm | Φ25mm |
| KM-2306-30 | 25-30mm | 2mm | 1.5mm | 0.005mm | Φ25mm |
| KM-2306-40 | 30-40mm | 2mm | 3mm | 0.006mm | Φ40mm |
| KM-2306-50 | 40-50mm | 2mm | 3mm | 0.006mm | Φ40mm |
| KM-2306-63 | 50-63mm | 2mm | 3mm | 0.007mm | Φ62mm |
| KM-2306-75 | 62-75mm | 2mm | 3mm | 0.007mm | Φ62mm |
| KM-2306-88 | 75-88mm | 2mm | 3mm | 0.007mm | Φ87mm |
| KM-2306-100 | 87-100mm | 2mm | 3mm | 0.007mm | Φ87mm |
Set Configurations
| Order No. | Measuring Range | Setting Ring |
|---|---|---|
| KM-2306S-12 | 6-8mm, 8-10mm, 10-12mm | Φ6mm Φ8mm Φ10mm |
| KM-2306S-20 | 12-16mm, 16-20mm | Φ16mm |
| KM-2306S-50 | 20-25mm, 25-30mm, 30-40mm, 40-50mm | Φ25mm Φ40mm |
| KM-2306S-100 | 50-63mm, 62-75mm, 75-88mm, 87-100mm | Φ62mm Φ87mm |
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Our product range includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,
gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. If you receive any defective items, we will promptly ship replacement parts or products.
Our strict calibration and inspection processes ensure high product quality.
